Installing LASS Thin Client msi on each workstation

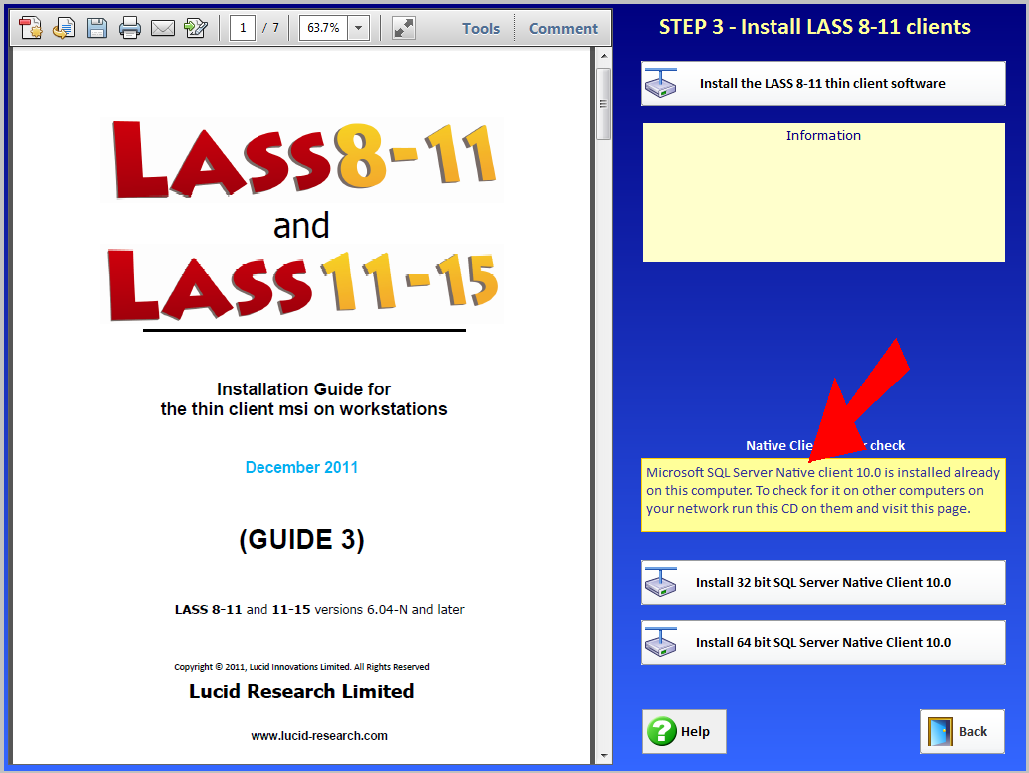

Before you start, launch the LASS CD on the workstation and go to the appropriate menu page on the Setup menu (see picture below) and look at the message displayed in the information box (arrowed in red) which tells you whether you have the correct ADO driver installed on your workstations.
1. If you don’t have the driver called SQL Server Native Client 10.0 then please ensure that you install it on the workstation either directly from the CD (see the 32bit and 64 bit driver install options below the slideshow) or by copying the driver from the CD and deploying the ‘msi’.
On the CD the full path to the 32 bit and 64 bit Native Client drivers are:
2. Having dealt with the Native Client driver, the next step is to install the thin client package which installs essential dll and ocx files onto workstations.
You can either install directly from the CD using the option ‘Install the LASS thin client software’ or by copying the driver from the CD and deploying the ‘msi’.
On the CD the full path to the system client msi is:
ROOT:\Workstation Setup\Lucid Universal Thin Client.msi
3. Now move your attention to the server and create a share (using Advanced Sharing) on the root of the application folder \LASS 8-11 Network\ or \LASS 11-15 Network\
Read permissions are sufficient for ordinary users on this share. If you intend to run the Reports and Admin module your share needs to have Full Control permissions on the folder called Archives which is used as a repository by the database archiving options.
4. On each workstation you need to make a short cut to the test module application file
LJUNTv603.exe (LASS 8-11)
LSECTv603.exe (LASS 11-15)
on the share you have just created on the server.
First, browse to the share you created in step 3 using:

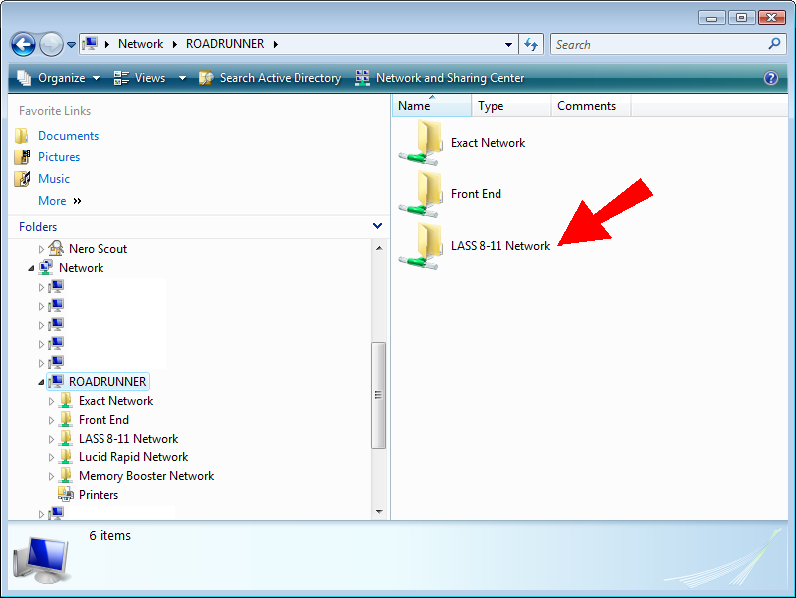

Computer > Network > COMPUTER (see below)
Open the Share and locate the two LASS application executable files (see picture below). Right mouse click over the file LJUNTv603.exe or LSECTv603.exe and select Create Shortcut. Now drag the shortcut to your workstation desktop and rename it as you wish.
To create a shortcut to the reports and admin module (which should only be available to teachers or administrators) carry out the same procedure on the file:
LJUNAv603.exe (LASS 8-11)
LSECAv603.exe (LASS 11-15)

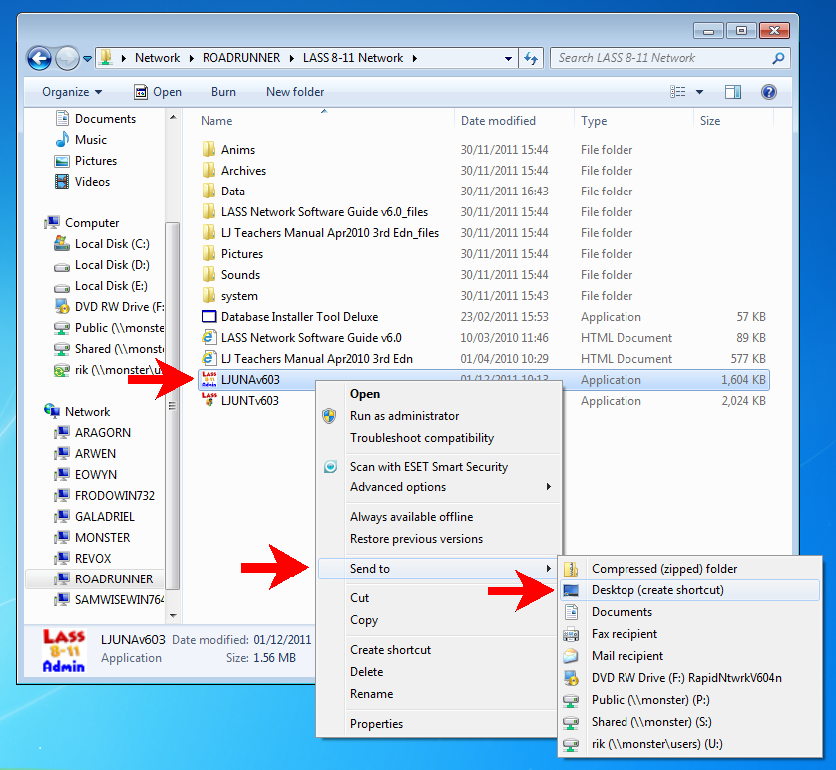

The picture below shows the process of creating shortcuts and sending them to the desktop.
Finally, log on as a typical User and ensure the shortcut is available to that User and attempt to run the LASS test application from it.

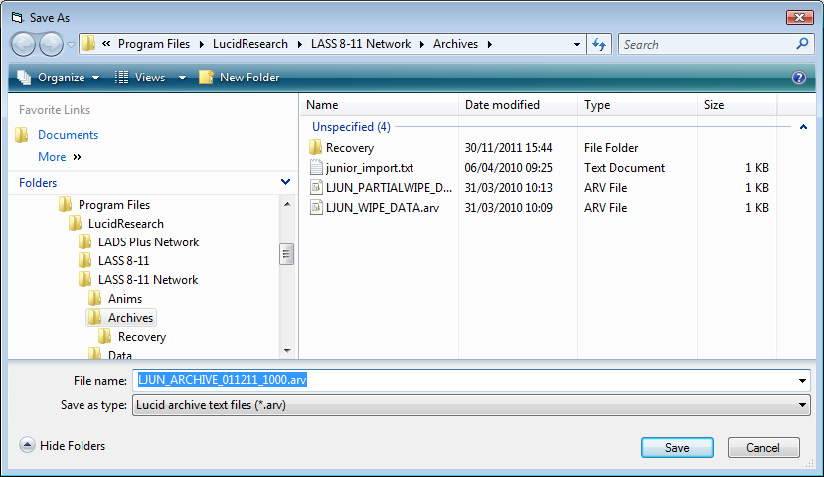

If you have a shortcut to the Reports and Admin module, after creating the shortcut on the workstation, once LASS is installed and working, go to the Archiving screen, select Save (archive) the current database and you should see a browser box similar to that below. Notice that you are taken directly to the Archives folder on the server.
